Product Description
Complete 100-1000kg/H Fish Feed Production Process For Floating Fish Feed
Introduction of This Fish Feed Production Process:
This fish feed production process DGP series floating fish feed pellet extruding machine has built-in screw and screw sleeve lengthening, material rotary cutting time is long, temperature can be adjusted, output torque can be adjusted, so that the product has high expansion degree and smooth surface.
This fish feed production process can make different feed, the DGP series floating fish feed production process machine can produce: suspended aquatic feed particles, sinking fish, shrimp and crab feed particles, pet feed particles, fishing fish feed particles, etc.
Features of Fish Feed Production Process Extruder:
1. The international advanced cutting structure adopts soft knife laminating form to realize stepless speed change. It can cut the discharge particles into required length products at will, and it is not easy to produce burr.
2. The design is novel, unique, simple in structure, easy to install, easy to disassemble and easy to operate.
3. The screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel and heat-treated, which have the advantages of wear resistance and long service life.
4. Unique pressure increasing die device is set inside to ensure feed output and quality, and electric heating device is equipped to improve feed expansion rate.
5.The main motor adopts high-quality Y Series two-phase and three-phase motors to ensure strong power.
6. Speed control feeding device, more convenient to operate, feed evenly, prevent suffocation.
7. It is easy to replace the discharge template, and the feed with different pore size only needs to be replaced.
8. The cutter adopts frequency converter to realize stepless speed change, and the pattern can be any length. 304 stainless steel plate is used outside, which is clean, tidy and convenient to clean. The length of screw can increase the proportion of fresh meat.
9. 50% of fresh meat can be added. The stability of the machine is improved, and the appearance of the products is smooth and the particle size is even. Both farmers and pet feed processing greatly improved the yield and efficiency.
Working Process of Fish Feed Production Process:
Technological procedure:
Crushed Materials → mixing → transferring → extrusion puffing → transferring → drying → cooling → screening → spraying oil → seasoning → packaging
Equipment configuration of Fish Feed Production Plant:
Crusher→Mixer → transfer unit → extruder → elevator → dryer → cooler → vibrating screen → elevator → oil spraying machine → automatic packaging machine
Main Parameters of Dry Type Floating Fish Feed Production Process Extruder:
|
Model
|
Capacity(kg/h)
|
Main Power(kw)
|
Feeding Power(kw)
|
Cutting Power(kw)
|
Screw Diameter(mm)
|
|
DGP-50
|
60-80
|
11
|
0.4
|
0.4
|
50
|
|
DGP-60
|
120-150
|
15
|
0.4
|
0.4
|
60
|
|
DGP-70
|
180-250
|
18.5
|
0.4
|
0.4
|
70
|
|
DGP-80
|
300-350
|
22
|
0.4
|
0.6
|
80
|
|
DGP-90
|
400-450
|
37
|
0.4
|
1.5
|
90
|
|
DGP-120
|
500-700
|
55
|
0.4
|
2.2
|
120
|
|
DGP-135
|
800-100
|
75
|
0.4
|
2.2
|
133
|
|
DGP-160
|
1200-1500
|
90
|
0.75-1.1
|
3.0
|
155
|
|
DGP-200
|
1800-2000
|
132
|
1.5
|
3.0-4.0
|
195
|
Final Floating Fish Feed Pellets of Fish Feed Production Process:
Related Machines of Fish Feed Production Process:

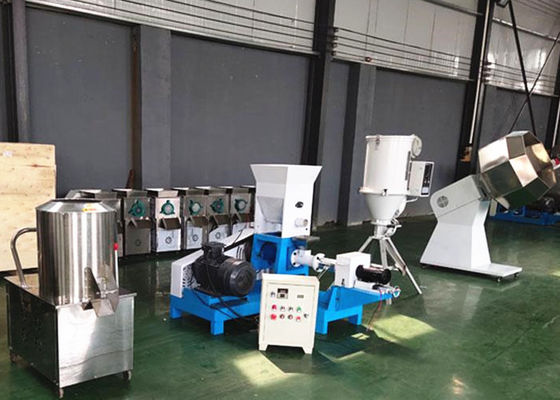

Complete Line of Fish Feed Production Process:
